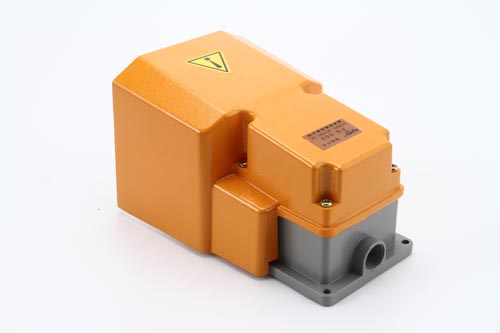

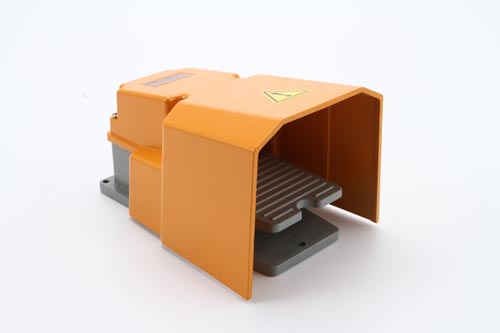

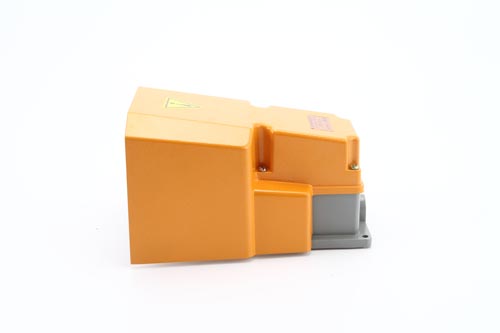

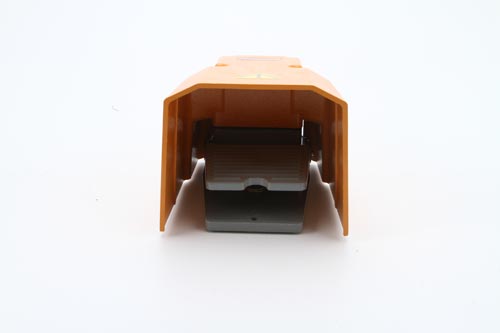

> Foot switch FS-502

DESCRIPTION

Features:

High strength, reliable, and safe universal pedal switch

Metal series shell, such as engineering plastic, steel panel, aluminium alloy etc.

Plastic series shell，can OEM/ODM

Widely used for industrial automation equipment, transport, pressing, medical treatment, test and etc.

Product characteristics

Types	Model	Rating	Internal switch	Contact	Action force	Material
Standard type Reset type	FS-101	10A 250VAC	V type micro switch	1A1B	1.2kg	Plastic
	FS-102	15A 250VAC	TM-1704	1A1B	1.1kg
	FS-3	15A 250VAC	V type micro switch	2A2B	1.2 kg	Aluminum cast
	FS-3S	15A 250VAC	TM1704	2A2B	1.1kg
Standard type Alternate action	FS-105	6A 250VAC	Imported alternative switch	PUSH ON	2kg
				PUSH OFF
	FS-106	6A 250VAC	Imported micro switch	PUSH 1A	1.5 kg	Plastic
				PUSH 1B
Small type	FS-201	10A 250VAC	V type micro switch	1A1B	0.7 kg	Plastic
	FS-01	10A 250VAC		1A1B	0.7 kg
Fixed type	FS-1	10A 250VAC		1A1B	0.9 kg	Iron
Protective cover type	FS-302	15A 250VAC	TM1704	1A1B	3.2 kg
	FS-305	6A 250VAC	Imported alternative switch	PUSH ON	3.1 kg
				PUSH OFF
	FS-306	6A 250VAC	Imported micro switch	PUSH 1A	3.5 kg
				PUSH 1B		Aluminum cast

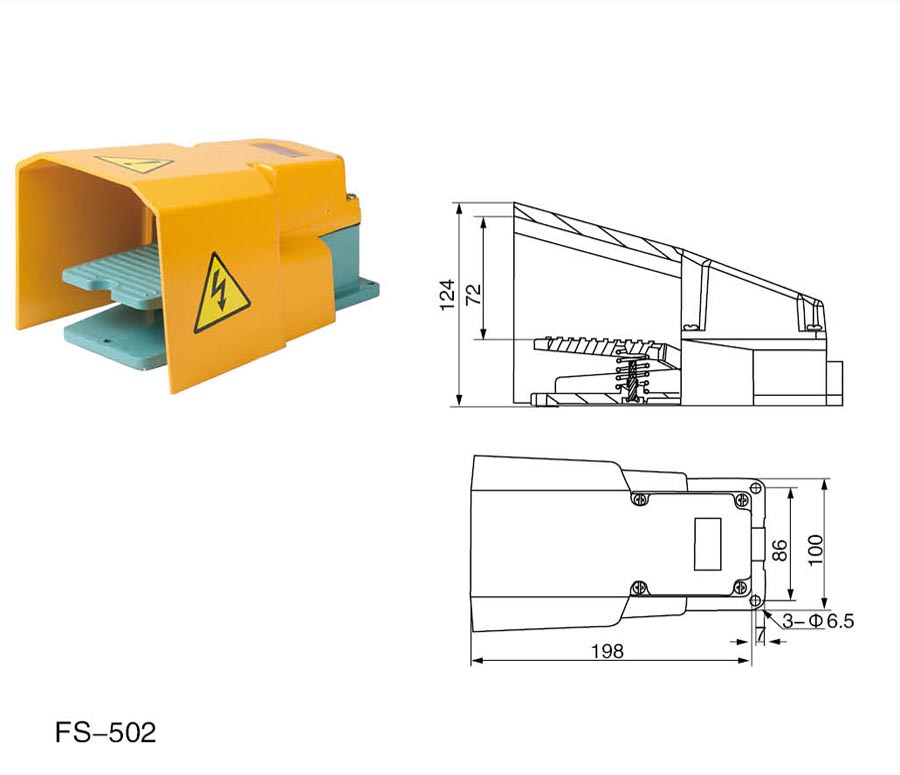

	FS-502	15A 250VAC	TM-1704	1A1B	3.2 kg
	FS-602	15A 250VAC	Button spring switch	2*1A1B	2.8 kg
	FS-702	15A 250VAC	TM1704	2*1A1B	3.2 kg
Large type	FS-402	15A 250VAC	TM1704	1A1B	3.2 kg
	FS-802	15A 250VAC	TM1704	2*1A1B	3.2 kg
