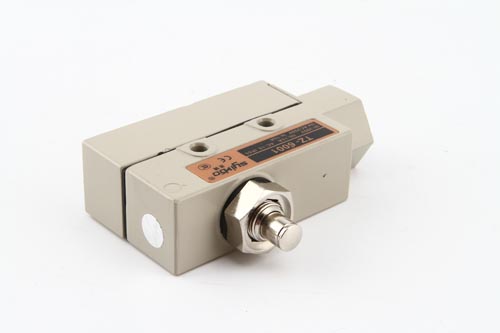

TZ-6001 limit switch
XingBo
TZ-6 limit switch
Zhongshan,Guangzhou
Western Union,T/T Paypal
2020-10-29 13:57:13
Features:
Built-in TM series micro switch, strong aluminum cast shell, design for water-proof and oil-proof
Rated value and characteristics are as same as TM micro switch
Various of actuators that are taken convenience for using
Each switch is equipped with cable fixator
Standard size configuration M20x1.5 for conduit connector
Operating characteristics
| Model | TZ6001 | TZ6002 | TZ6003 | TZ6004 | TZ6043 | TZ6101 | TZ6102 | TZ6103 | TZ6104 | TZ6143 |
| OF(Max.) | 250-350g | 250-350g | 570g | 570g | 800g | 500g | 640g | 640g | ||
| RF(Min.) | 114g | 114g | 170g | 170g | 240g | 100g | 230g | 230g | ||
| PT(Max.) | 0.4mm | 0.5mm | 4mm | 4mm | 2mm | 1mm | 5mm | 5mm | ||
| OT(Min.) | 5.5mm | 3.6mm | 6mm | 6mm | 5mm | 3.5mm | 6mm | 6mm | ||
| MD(Max.) | 0.05mm | 0.05mm | 0.4mm | 0.4mm | 0.1mm | 0.12mm | 0.4mm | 0.4mm | ||
| OP | 38.2±0.8mm | 49.7±1mm | 45.8±0.8mm | 49.7±0.8mm |
Characteristics
| Operation speed | 0.01mm-1m/s |
| Operating frequency | Mechanical: 240 operations/minute |
| Electrical: 20 operations/minute | |
| Contact resistance | 15MΩ Max. (initial value) |
| Insulation resistance | 100MΩ min. (at 500VDC) |
| 1000VAC, 50/60Hz for 1 minute between terminals of the same polarity | |
| 1500VAC. 50/60Hz for 1 minute between current-carrying and non-current-carrying metal parts | |
| Dielectric strength | 1500VAC, 50/60Hz for 1 minute between each terminal and ground |
| Vibration | 10-55Hz, 1.5mm double amplitude |
| Shock | Mechanical durable: 1,000m/ Sec2 (about 100G’ S) |
| Malfunction: 300m/ Sec2 (about 30G’ S) | |
| Ambient temperature | General type: -25℃- 80℃, Sealed type: -15-80℃ |
| Humidity | General type: 85%RH, Sealed type: 95% RH |
| Life | Mechanical: 20,000,000 operations above (under rated OT) |
| Electrical: 500,000 operations above |
