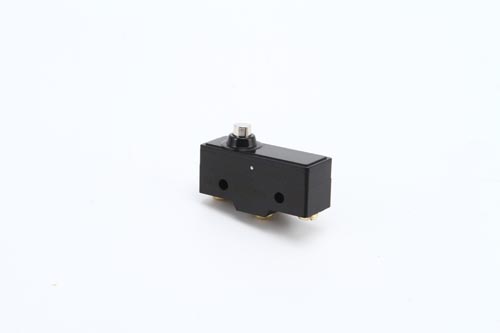

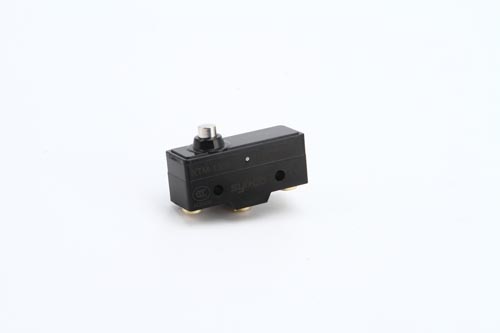

XTM-1306 Micro switch
XingBo
XTM micro switch
Zhongshan,Guangzhou
Western Union,T/T Paypal
2020-10-29 16:58:56
Features:
Various of actuators, action position is adjustable
High switch on and off capacity (15A)
High accuracy
Wide range of operation speed
Each type of TM series has solder terminal, screw terminal and tab terminal are selective
Add A for solder terminal, add C for tab terminal, blank for screw terminal
Ratings
| Rated voltage | Non-inductive Load(A) | Inductive Load(A) | Inrush current(A) | |||||||
| Resistance Road | Lamp Load | Inductive Load | Motor Load | |||||||
| NC | NO | NC | NO | NC | NO | NC | NO | NC | NO | |
| 125VAC | 15 | 3 | 1.5 | 15 | 5 | 2.5 | ||||
| 250VAC | 15 | 2.5 | 1.25 | 15 | 3 | 1.5 | ||||
| 500 VAC | 3 | 1.5 | 0.75 | 2.5 | 1.5 | 0.75 | ||||
| 8VDC | 15 | 3 | 1.5 | 15 | 5 | 2.5 | ||||
| 14VDC | 15 | 3 | 1.5 | 10 | 5 | 2.5 | 30max. | 15max. | ||
| 30VDC | 6(2) | 3 | 1.5 | 5 | 5 | 2.5 | ||||
| 125VDC | 0.4 | 0.4 | 0.4 | 0.05 | 0.05 | 0.05 | ||||
| 250VDC | 0.2 | 0.2 | 0.2 | 0.03 | 0.03 | 0.03 |
Characteristics
| Operation speed | 0.01mm-1m/s |
| Operating frequency | Mechanical: 240 operations/minute |
| Electrical: 20 operations/minute | |
| Contact resistance | 15MΩ Max. (initial value) |
| Insulation resistance | 100MΩ min. (at 500VDC) |
| 1000VAC, 50/60Hz for 1 minute between terminals of the same polarity | |
| 1500VAC. 50/60Hz for 1 minute between current-carrying and non-current-carrying metal parts | |
| Dielectric strength | 1500VAC, 50/60Hz for 1 minute between each terminal and ground |
| Vibration | 10-55Hz, 1.5mm double amplitude |
| Shock | Mechanical durable: 1,000m/ Sec2 (about 100G’ S) |
| Malfunction: 300m/ Sec2 (about 30G’ S) | |
| Ambient temperature | General type: -25℃- 80℃, Sealed type: -15-80℃ |
| Humidity | General type: 85%RH, Sealed type: 95% RH |
| Life | Mechanical: 20,000,000 operations above (under rated OT) |
| Electrical: 500,000 operations above | |
| Weight | Approx. 22 to 58g |
Operating Characteristics
| Model | TM1300 | TM1301 | TM1303 | TM1305 | TM1306 | TM1307 | TM1308 |
| OF(Max.) | 350g | 300g | 300g | 350g | 350g | 350g | 350g |
| RF(Min.) | 114g | 50g | 50g | 114g | 114g | 114g | 114g |
| PT(Max.) | 0.4mm | 4mm | 4mm | 0.4mm | 0.4mm | 0.4mm | 0.4mm |
| OT(Max.) | 0.13mm | 1.6mm | 1.6mm | 1.6mm | 1.6mm | 5.5mm | 3.58mm |
| MD(Max.) | 0.05mm | 1.3mm | 1.3mm | 0.05mm | 0.05mm | 0.05mm | 0.05mm |
| FP(Max.) | 20.6mm | 31.8mm | |||||
| OP(mm) | 15.9±0.4 | 17.4±0.8 | 28.6±0.8 | 28.2±0.5 | 21.5±0.5 | 21.8±0.8 | 33.4±1.2 |
| Models | TM1309 | TM1701 | TM1702 | TM1703 | TM1704 | TM1705 | TM1743 |
| OF(Max.) | 350g | 70g | 160g | 100g | 160g | 10g | 160g |
| RF(Min.) | 114g | 14g | 28g | 22g | 42g | 3g | 42g |
| PT(Max.) | 0.4mm | 10mm | 5mm | 7.1mm | 2.7mm | 20mm | 2.7mm |
| OT(Max.) | 3.58mm | 5.6mm | 2mm | 4mm | 2.4mm | 5.6mm | 2.4mm |
| MD(Max.) | 0.05mm | 1.27mm | 1mm | 1.02mm | 0.5mm | 3mm | 0.5mm |
| FP(Max.) | 28.2mm | 24.8mm | 38.5mm | 32.5mm | 43.6mm | ||
| OP(mm) | 33.4±1.2 | 19±0.8 | 19±0.4 | 30.2±0.8 | 30.2±0.4 | 19±0.8 | 43.1±0.8 |
