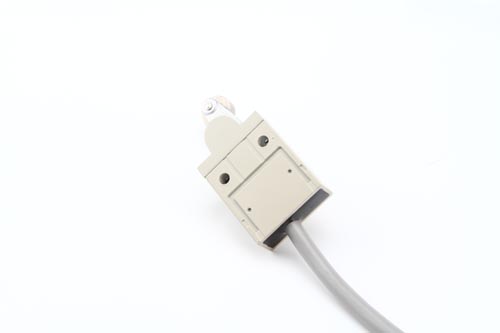

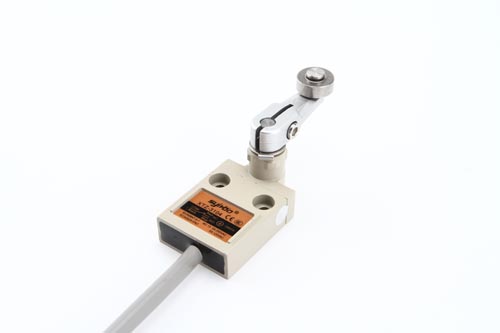

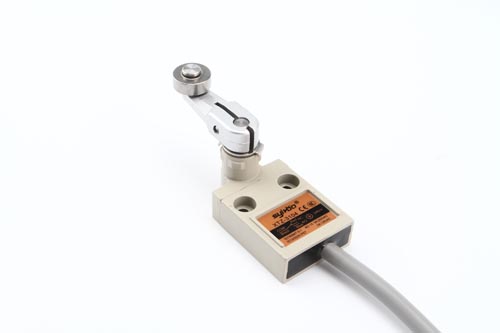

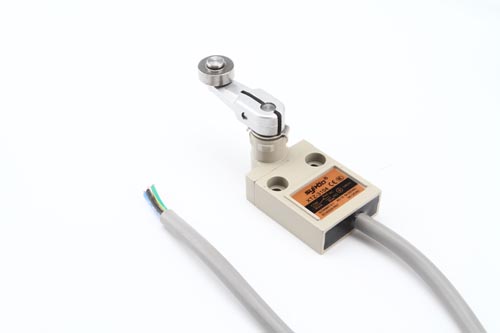

XTZ-3104 Limit Switch
XingBo
XTZ-3 limit switch
Zhongshan,Guangzhou
Western Union,T/T Paypal
2020-10-29 10:50:07
Features:
DPDS limit switch for multiple applications
Aluminum alloy diecast housing
High mechanical strength
Oil resistance, waterproof and dustproof
Ratings
| Rated voltage | Non-inductive Load(A) | Inductive Load(A) | ||||||
| Resistance Load | Lamp Load | Inductive Load | Motor Load | |||||
| NC | NO | NC | NO | NC | NO | NC | NO | |
| 125VAC | 5(0.1) | 1.5 | 0.7 | 3 | 2.5 | 1.3 | ||
| 250VAC | 3 | 1 | 0.5 | 2 | 1.5 | 0.8 | ||
| 8VAC | 5(0.1) | 2 | 5 | 4 | 3 | |||
| 14VDC | 5(0.1) | 2 | 4 | 4 | 3 | |||
| 30VDC | 4(0.1) | 2 | 3 | 3 | 3 | |||
| 125VDC | 0.4 | 0.05 | 0.4 | 0.4 | 0.05 | |||
| 250VDC | 0.2 | 0.03 | 0.4 | 0.2 | 0.03 |
Characteristics
|
Rated value |
5A 125V, 3A 250VAC |
|
Operation speed |
1mm-2m/s |
|
Operating frequency |
Mechanical: 120 operations/minute Electrical: 30 operations/minute |
|
Contact resistance |
15MΩ Max. (initial value) |
|
Insulation resistance |
100MΩ min. (at 500VDC) |
|
Dielectric strength |
1000VAC, 50/60Hz for 1 minute between terminals of the same polarity |
|
|
1500VAC. 50/60Hz for 1 minute between current-carrying and non-current-carrying metal parts |
|
|
1500VAC, 50/60Hz for 1 minute between each terminal and ground |
|
Vibration |
10-55Hz, 1.5mm double amplitude |
|
Shock |
Mechanical durable: 1,000m/ Sec2 (about 100G’ S) |
|
|
Malfunction: 50m/ Sec2 (about 30G’ S) |
|
Ambient temperature |
-10℃- 7℃ (with no icing) |
|
Humidity |
95% RH |
|
Life |
Mechanical: 10000,000 operations above (under rated OT) Electrical: 200000 operations above |
|
Weight |
Approx. 360g(cable length 3m) Approx. 540g(cable length 5m) |
|
Protection |
IEC specification: IP67 |
Operating Characteristics
| Model | TZ-3110 | TZ-3111 | TZ-3112 | TZ-3113 | TZ-3169 |
| OF(Max.) | 1200gf(11.77N) | 1800gf(17.65N) | 1800gf(17.65N) | 1800gf(17.65N) | 150gf(1.47N) |
| RF(Min.) | 450gf(4.41N) | 450gf(4.41N) | 450gf(4.41N) | 450gf(4.41N) | - |
| PT(Max.) | 1.8mm | 1.8mm | 1.8mm | 1.8mm | 15° |
| OT(Min.) | 3mm | 3mm | 3mm | 3mm | - |
| MD(Max.) | 0.2mm | 0.2mm | 0.2mm | 0.2mm | - |
| OP | 28.5±mm | 24.9±mm | 34.3±mm | 34.3±mm | - |

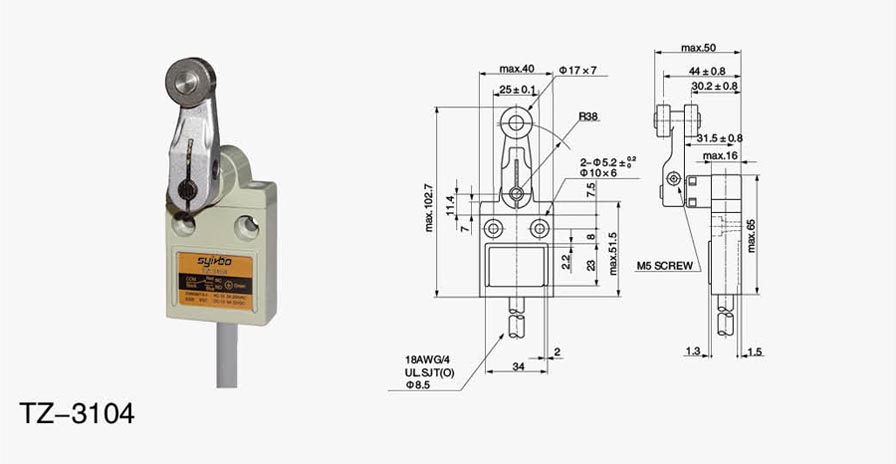

| Model | TZ-3101 | TZ-3102 | TZ-3103 | TZ-3104 |
| OF(Max.) | 1200gf(11.77N) | 1200gf(11.77N) | 1200gf(11.77N) | 580gf(5.69N) |
| RF(Min.) | 450gf(4.41N) | 450gf(4.41N) | 450gf(4.41N) | 450gf(4.41N) |
| PT(Max.) | 1.8mm | 1.8mm | 1.8mm | 25 |
| OT(Min.) | 3mm | 3mm | 3mm | 40 |
| MD(Max.) | 0.2mm | 0.2mm | 0.2mm | 3 |
| OP | 15.7±mm | 28.5±mm | 28.5±mm | - |
